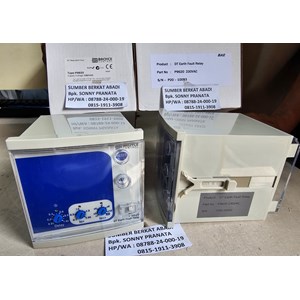

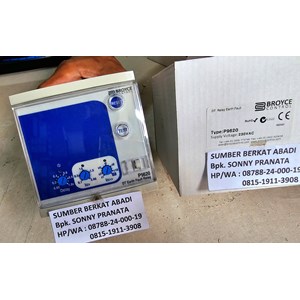

BROYCE P9620 EARTH FAULT RELAY DETECTION P-9620 P 9620 P96 20 - 230VAC

BROYCE P9620 EARTH FAULT RELAY DETECTION P-9620 P 9620 P96 20 - 230VAC - GENUINE

Brand = BROYCE CONTORL
Part Number = P9620
Description = Earth Fault Relay Detection (DT)
Voltage = 230 VAC
Adjustable Low-set and High-set tripping (High-set disable option)
Adjustable Definite time setting (applies to Low-set threshold only)
Instantaneous tripping on High-set
LED indication shows if thresholds exceeded and when tripped
Test and Reset buttons
96 x 96mm, Panel Mount
An Earth Fault relay that will monitor and detect when the measured current exceeds the set trip threshold and de-energise the output relay after the set time delay. Two levels of tripping thresholds are provided (both adjustable) allowing the user to set a “Low-set” and “High-set” trip point. The adjustable time delay is only applicable when the Low-set trip point is exceeded. If the measured current exceeds the High-set trip point, the relay de-energises straight away.

An auxiliary supply (required to power the unit) must be present for the product to function.

SPECIFICATIONS :
Monitoring function: Earth Fault
Tripping characteristic: Definite Time
Low-set trip threshold: 0.1 – 2A
High-set trip threshold: x1 – x10 or disable
Time delay: 0.05 – 1s
Aux. supply voltage*: 115VAC or 230VAC
Output: SPDT 8A @ 250V (AC1)
Dimensions(mm): W:96 x H:96 x D:100
Product standard(s): IEC 60255-151
